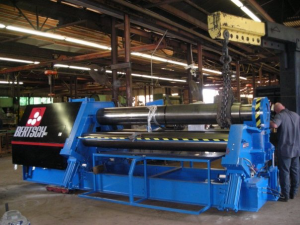

We are able to roll plates from 16ga to 1″ up to 10′ in length.

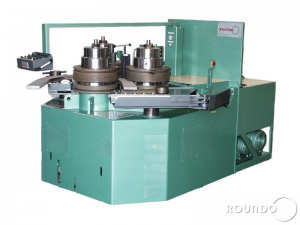

We are able to roll the following:
- Angles to 6″ x 6″ x 5/8″
- Bars to 1″ x 6″ hard way
- Bars to 2″ x 12″ easy way
- Channel to 8″ hard way
- Channel to 15″ easy way
- Beams to 12″ x 50lbs. easy way
- 1/2″ to 6″ pipes SCH 40

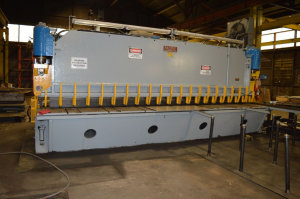

We are able to shear the following:
- Mild steel to 3/4″ x 20′
- Stainless Steel to 1/2′ x 20′
- Aluminum to 1″ x 20′
- Other alloys to 20′

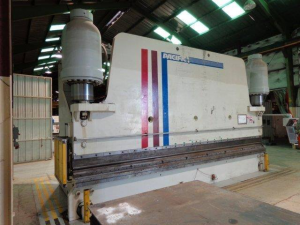

We have hydraulic press brakes with capabilities up to 1000 tons.

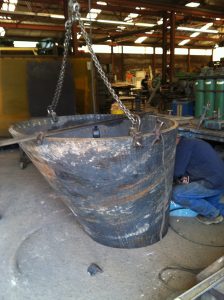

Cones and Transitions
We can create any type of cone or transition that you need. Some include:
- Rectangular to rounds
- Fish mouths
- Offset Centers
We are able to complete general milling and lathe work.

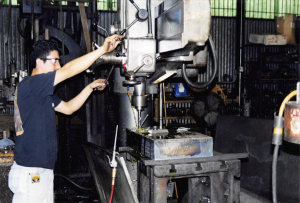

We are able to drill up to 3 7/16″ diameter holes and tap up to 1 3/4″ threads on our radial arm drills. However, larger drilling and tapping can be done on our CNC mills depending on the size of the material.

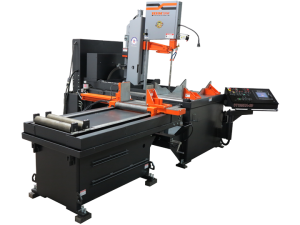

We are able to saw and miter up to 24″ beams.
We are able to weld hot roll, stainless steel, and aluminum.
